ACCORDING TO DIN 73379-1 TYPE 3E

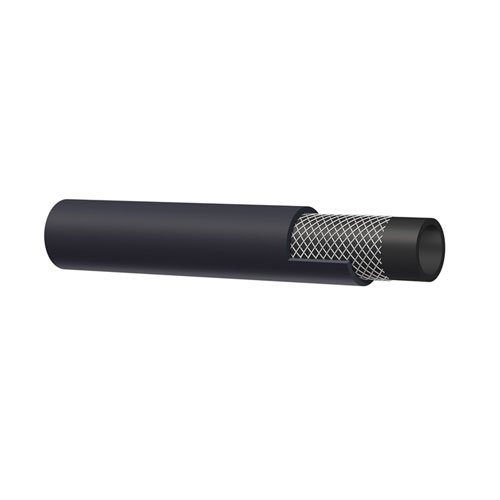

Inner Tube: Synthetic FKM-ECO(Fluor-Epichorydrin Rubber), black, smooth
Resistance against biodiesel, petrol and diesel fuel,
ECO-DIESEL (RME- and PME -fuel) and all fuel types.
Reinforcement: High tensile textile Braiding
Cover: Synthetic Eco(Epichlorhydrin Rubber), black, smooth
Very low fuel permeability, high heat resistance, highly flexible
Resistance against ozone, acid, abrasion, heat ageing, weather.
Operating temperature: from -40º C to +125º C
Peak Temperature: +150º C
MARKING
N- DIN 73379-1- IDXOD- 3E >FKM-ECO/ECO<
ARTICLE |
ID Ø |
ID Ø |
OD Ø |
Wall |
Bend |
Working |
Bursting |
NUMBER: |
|
|
|
thickness |
Radius |
Pressure |
Pressure |
|
[mm]: |
[Inch]: |
[mm]: |
[mm]: |
[mm]: |
[Psi Bar]: |
[Psi Bar]: |
E3-032090 |
3,2 |
1/8" |
9 |
2,9 |
45 |
145psi10bar |
435psi30bar |
E3-035950 |
3,5 |
1/8" |
9,5 |
3 |
45 |
145psi10bar |
435psi30bar |
E3-055115 |
5,5 |
7/32" |
11,5 |
3 |
60 |
145psi10bar |
435psi30bar |
E3-073133 |
7,3 |
9/32" |
13,3 |
3 |
70 |
145psi10bar |
435psi30bar |
E3-080140 |
8 |
5/16" |
14 |
3 |
70 |
145psi10bar |
435psi30bar |
E3-093153 |
9,3 |
23/64" |
15,3 |
3 |
80 |
145psi10bar |
435psi30bar |
E3-113180 |
11,3 |
7/16" |
18 |
3,35 |
80 |
145psi10bar |
435psi30bar |
E3-120190 |
12 |
1/2" |
19 |
3,5 |
80 |
145psi10bar |
435psi30bar |
E3-170240 |
17 |
5/8" |
24 |
3,5 |
125 |
145psi10bar |
435psi30bar |
