ACCORDING TO DIN 73379-1 TYPE 2A

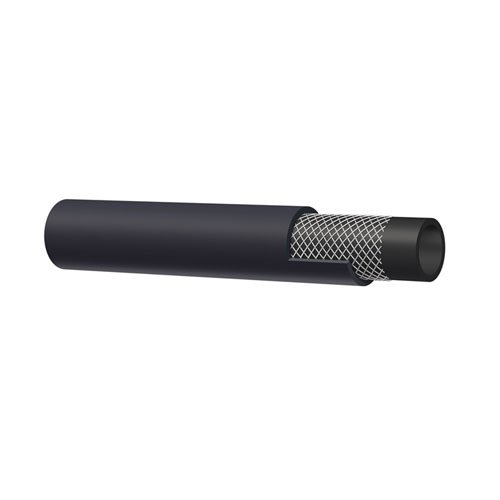

Inner Tube: Synthetic NBR (Nitrile Butadiene Rubber), black, smooth
Resistance against fuel, oil, diesel, petroleum aromatics,
lubricants, liquids on mineral-and glycolbase.
Reinforcement: High tensile textile Braiding
Cover: Synthetic CR (Chloroprene Rubber), black/green/blue, smooth
Resistance against ozone, acid, abrasion, heat ageing, weather,
oil, petroleum aromatics, mineral oils, sunlight.
Operating temperature: from -35º C to +90º C
Peak Temperature: +110º C
MARKING:
N- DIN 73379- 1- IDXOD- 2A >NBR/CR<
It is possible to print markings according to customer request.
ARTICLE |
ID Ø I |
D Ø |
OD Ø |
Wall |
Bend |
Working |
Bursting |
NUMBER: |
|
|
|
thickness |
Radius |
Pressure |
Pressure |
|
[mm]: |
[Inch]: |
[mm]: |
[mm]: |
[mm]: |
[Psi Bar]: |
[Psi Bar]: |
E2-030080 |
3 |
7/64” |
8 |
2,5 |
45 |
145psi10bar |
435psi30bar |
E2-040100 |
4 |
5/32” |
10 |
3 |
50 |
145psi10bar |
435psi30bar |
E2-050110 |
5 |
3/16” |
11 |
3 |
55 |
145psi10bar |
435psi30bar |
E2-060120 |
6 |
1/4” |
12 |
3 |
60 |
145psi10bar |
435psi30bar |
E2-070130 |
7 |
9/32” |
13 |
3 |
70 |
145psi10bar |
435psi30bar |
E2-075135 |
7,5 |
19/64” |
13,5 |
3 |
70 |
145psi10bar |
435psi30bar |
E2-080140 |
8 |
5/16” |
14 |
3 |
80 |
145psi10bar |
435psi30bar |
E2-090150 |
9 |
23/64” |
15 |
3 |
80 |
145psi10bar |
435psi30bar |
E2-093153 |
9,3 |
23/64” |
15,3 |
3 |
80 |
145psi10bar |
435psi30bar |
E2-100170 |
10 |
3/8” |
17 |
3,5 |
80 |
145psi10bar |
435psi30bar |
E2-110180 |
11 |
7/16” |
18 |
3,5 |
80 |
145psi10bar |
435psi30bar |
E2-120190 |
12 |
1/2" |
19 |
3,5 |
80 |
145psi10bar |
435psi30bar |
E2-140220 |
14 |
35/64" |
22 |
4 |
100 |
145psi10bar |
435psi30bar |
E2-160240 |
16 |
5/8” |
24 |
4 |
125 |
145psi10bar |
435psi30bar |
