Base Material - NBR
Operating Temperature - -30 ÷ +120 °C
Pressure - 10 bar
Vacuum - n.d.

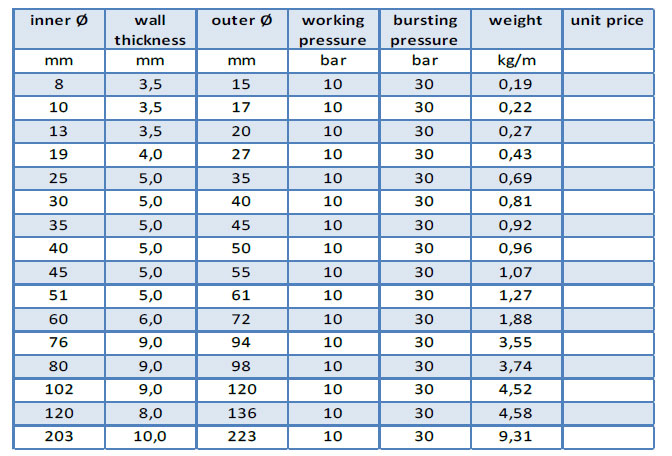

Diameter Range - 8 ÷ 203 mm
Key Feature - Suitable for unleaded petrol
and petroleum products with less than 50% aromatic
contents
Properties
-base layer resistant to petroleum products
-antistatic thanks to copper wire embedded between the two layers
-cover resistant to abrasion and weathering, as well as splashes of transported product
-reference standards: ISO 1307-1997 (ISO 4671)
Applications
-hose for the transport of unleaded petrol
-oils up to a temperature of +120 ° C
-petroleum products with aromatic content up to 50%, excluding benzene-toluene and related solvents

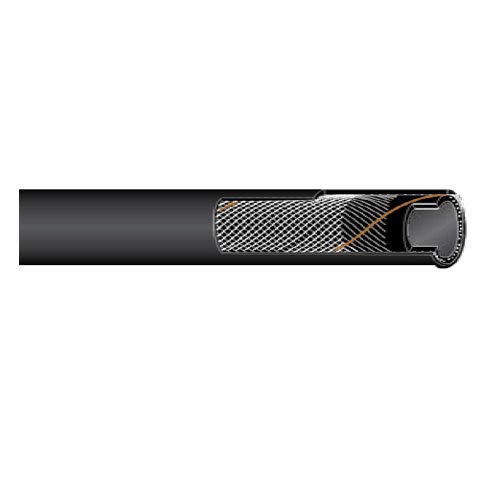

Construction
-base layer: smooth black rubber, insulation, NBR
-reinforcement: textile fabric, copper wire for static electricity dissipation
-cover: smooth black CR rubber, with visible printing
