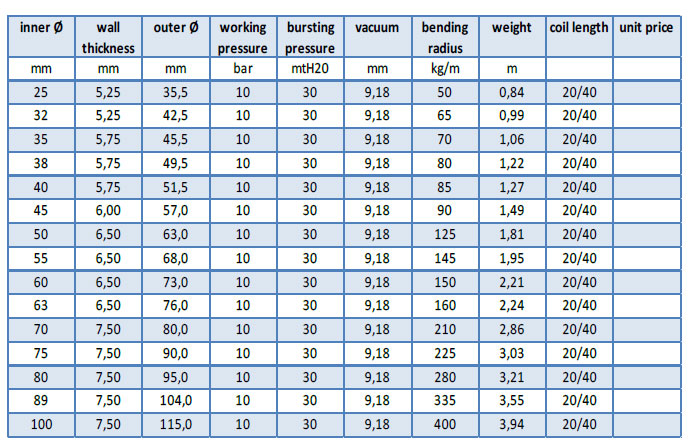

Base Material - NBR
Operating Temperature - -30 ÷ +80 °C
Pressure - 10 bar
Vacuum - 9,18 mtH2O
Diameter Range - 25 ÷ 100 mm
Key Feature - Spiral hose, Anti-static, Oil
field products with aromatic
content smaller than 50%
Properties
-light weight and flexible, even at cold temperature.
-dissipation of static electricity ensured by contact of built-in
wire with the coupling.
Applications
-cover: oil and weather resistant NBR/SBR, black,
fabric impression.
-suction and discharge of petroleum products with aromatic
content up to 50 % in all industrial applications.
-road tanker equipment for oil and petrol deliveries.

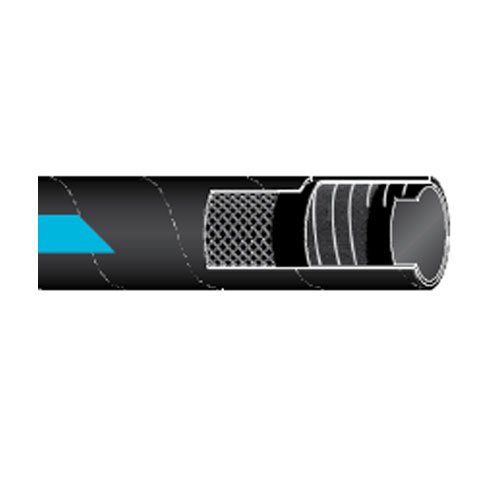

Construction
-inner tube: oil and petrol resistant NBR, black, smooth.
reinforcement: synthetic textile with embedded steel helix.
