ACCORDING TO ISO 7840 A1

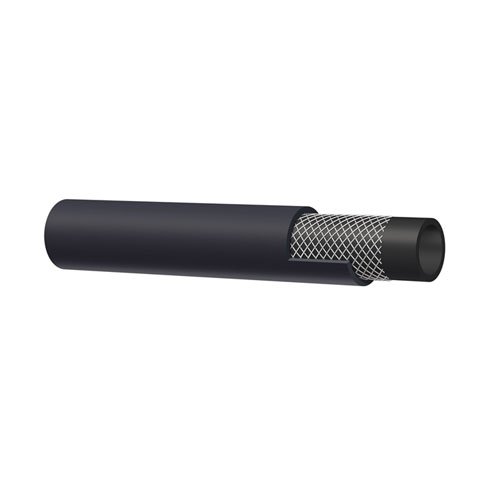

Inner Tube: Synthetic NBR (Nitrile Butadiene Rubber), black, smooth
Resistance against fuel, gasoline, diesel and gas in marine fuel lines
Reinforcement: High tensile textile Braiding
Cover: Synthetic CR (Chloroprene Rubber), black, smooth
Resistance against ozone, acid, abrasion, heat ageing, weather,
oil, petroleum aromatics, mineral oils, sunlight.
Fire resistant.
Operating temperature: from -35º C to +90º C
Peak Temperature: +110º C
MARKING:
MARINE FUEL HOSE DN IDXOD ISO 7840-A1
It is possible to print markings according to customer request.
ARTICLE I |
D Ø |
ID Ø |
OD Ø |
Wall |
Bend |
Working |
Bursting |
NUMBER: |
|
|
|
thickness |
Radius |
Pressure |
Pressure |
[ |
mm]: |
[Inch]: |
[mm]: |
[mm]: |
[mm]: |
[Psi Bar]: |
[Psi Bar]: |
M2-048110 |
4,8 |
3/16” |
11 |
3,1 |
55 |
145psi10bar |
435psi30bar |
M2-060130 |
6 |
1/4” |
13 |
3,5 |
70 |
145psi10bar |
435psi30bar |
M2-080170 |
8 |
5/16” |
17 |
4,5 |
80 |
145psi10bar |
435psi30bar |
M2-100190 |
10 |
3/8” |
19 |
4,5 |
80 |
145psi10bar |
435psi30bar |
M2-130200 |
13 |
1/2" |
20 |
3,5 |
100 |
145psi10bar |
435psi30bar |
M2-150230 |
15 |
37/64" |
23 |
4 |
125 |
145psi10bar |
435psi30bar |
M2-160240 |
16 |
5/8” |
24 |
4 |
125 |
145psi10bar |
435psi30bar |
M2-190270 |
19 |
3/4” |
27 |
4 |
125 |
145psi10bar |
435psi30bar |
*** It is possible to produce diameters according to customer request.
