ACCORDING TO DIN 73379-1 TYPE 2A

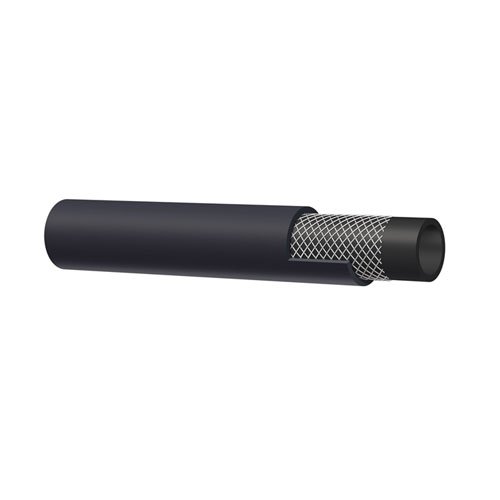

Inner Tube: Synthetic Eco(Epichlorhydrin Rubber), black, smooth
Reinforcement: High tensile textile Braiding
Cover: Synthetic Eco(Epichlorhydrin Rubber), black, smooth
Resistance against fuel, oil, diesel, biodiesel fuels, Eco-diesel(RME- PME), ethanol, petroleum aromatics, lubricants, liquids on mineral-and glycolbase.
Resistance against ozone, acid, oil, abrasion, heat ageing, weather, petroleum aromatics, mineral oils, sunlight.
Very low fuel permeability, high heat resistance, highly flexible.
Operating temperature: from -40º C to +125º C
Peak Temperature: +150º C
MARKING:
N- DIN 73379- 1- IDXOD- 2A >ECO/ECO<
It is possible to print markings according to customer request.
ARTICLE |
D Ø |
D Ø |
OD Ø |
Wall |
Bend |
Working |
Bursting |
NUMBER: |
|
|
|
thickness |
Radius |
Pressure |
Pressure |
|
[mm]: |
[Inch]: |
[mm]: |
[mm]: |
[mm]: |
[Psi Bar]: |
[Psi Bar]: |
EC-030080 |
3 |
7/64” |
8 |
2,5 |
45 |
145psi10bar |
435psi30bar |
EC-040100 |
4 |
5/32” |
10 |
3 |
50 |
145psi10bar |
435psi30bar |
EC-050110 |
5 |
3/16” |
11 |
3 |
55 |
145psi10bar |
435psi30bar |
EC-060120 |
6 |
1/4” |
12 |
3 |
60 |
145psi10bar |
435psi30bar |
EC-070130 |
7 |
9/32” |
13 |
3 |
60 |
145psi10bar |
435psi30bar |
EC-075135 |
7,5 |
19/64” |
13,5 |
3 |
70 |
145psi10bar |
435psi30bar |
EC-080140 |
8 |
5/16” |
14 |
3 |
80 |
145psi10bar |
435psi30bar |
EC-090150 |
9 |
23/64” |
15 |
3 |
80 |
145psi10bar |
435psi30bar |
EC-100170 |
10 |
3/8” |
17 |
3,5 |
80 |
145psi10bar |
435psi30bar |
EC-110180 |
11 |
7/16” |
18 |
3,5 |
80 |
145psi10bar |
435psi30bar |
EC-120190 |
12 |
1/2" |
19 |
3,5 |
80 |
145psi10bar |
435psi30bar |
*** It is possible to produce diameters according to customer request.
