CERTIFIED AND HOMOLOGATED ECE R 67

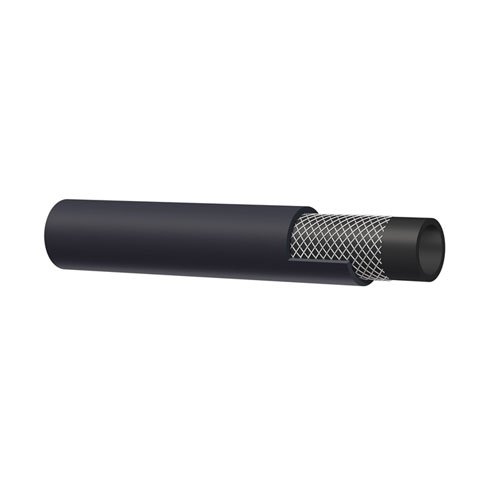

Inner Tube: Synthetic NBR (Nitrile Butadiene Rubber), black, smooth
Low gas permeability.
Resistance against liquefied petroleum gas and compressed natural gas.
Reinforcement: High tensile textile Braiding
Cover: Synthetic CR (Chloroprene Rubber), black, smooth
Resistance against ozone, acid, abrasion, heat ageing, weather.
MARKING:
ARPOL RUBBER HOSE AUTOGAS ECE 67 - L.P.G. CLASS 2 TYPE A - d. 5 mm– MONTH/YEARlll lll
PACKAGING:
It is possible to cut special lenghts according to customer request.
Operating temperature: from -25º C to +125º C |
|||||||
ARTICLE |
ID Ø |
ID Ø |
OD Ø |
Wall |
Bend |
Working |
Bursting |
NUMBER: |
|
|
|
thickness |
Radius |
Pressure |
Pressure |
|
[mm]: |
[Inch]: |
[mm]: |
[mm]: |
[mm]: |
[Psi Bar]: |
[Psi Bar]: |
G2-040100 |
4 |
5/32” |
10 |
3 |
50 |
145psi10bar |
435psi30bar |
G2-050110 |
5 |
3/16” |
11 |
3 |
55 |
145psi10bar |
435psi30bar |
G2-060120 |
6 |
1/4” |
12 |
3 |
60 |
145psi10bar |
435psi30bar |
G2-060130 |
6 |
1/4" |
13 |
3,5 |
70 |
145psi10bar |
435psi30bar |
G2-100170 |
10 |
3/8” |
17 |
3,5 |
80 |
145psi10bar |
435psi30bar |
G2-120190 |
12 |
1/2" |
19 |
3,5 |
80 |
145psi10bar |
435psi30bar |
G2-160240 |
16 |
5/8” |
24 |
4 |
125 |
145psi10bar |
435psi30bar |
G2-170240 |
17 |
5/8" |
24 |
3,5 |
125 |
145psi10bar |
435psi30bar |
G2-190270 |
19 |
11/16" |
27 |
4 |
125 |
145psi10bar |
435psi30bar |
|
*** It is possible to produce diameters according to customer request. |
|
|||||
