ACCORDING TO DIN 73411
Resistance against hot and cold water, steam, liquid cooling system, heat and ozone.

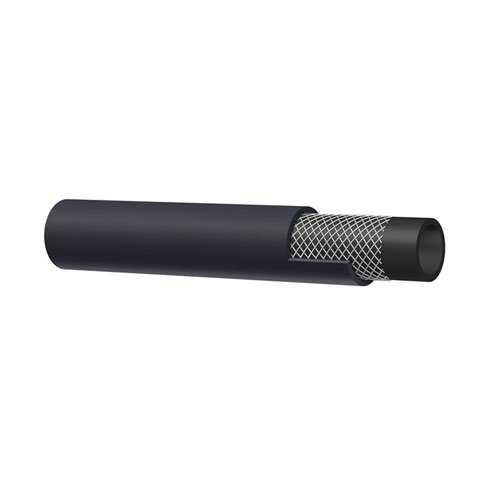

TEXTILE REINFORCED WATER HOSE
Inner Tube: Synthetic EPDM(Ethylene Probylene Dien Rubber), black, smooth
Reinforcement: High tensile textile Braiding
Cover: Synthetic EPDM Rubber(Ethylene Probylene Dien), black, smooth
TEXTILE BRAIDED WATER HOSE
Inner Tube:Synthetic EPDM(Ethylene Probylene Dien Rubber), black, smooth
Reinforcement: High tensile textile Braiding, gray
ARTICLE |
ID Ø |
OD Ø |
Wall |
Working/Burst |
|
NUMBER: |
Thickness |
Pressure |
|||
|
[mm] |
[mm] |
[mm] |
[Psi / Bar]: |
|
S3-060140 |
6 |
14 |
4 |
7bar/14bar |
|
S3-080150 |
8 |
15 |
3,5 |
7bar/14bar |
|
S3-100170 |
10 |
17 |
3,5 |
7bar/14bar |
|
S3-120190 |
12 |
19 |
3,5 |
7bar/14bar |
|
S3-130200 |
13 |
20 |
3,5 |
7bar/14bar |
|
S3-140210 |
14 |
21 |
3,5 |
7bar/14bar |
|
S3-150230 |
15 |
23 |
4 |
7bar/14bar |
|
S3-160240 |
16 |
24 |
4 |
7bar/14bar |
|
S3-180260 |
18 |
26 |
4 |
7bar/14bar |
|
S3-190270 |
19 |
27 |
4 |
7bar/14bar |
|
*** It is possible to produce diameters according to customer request. |
|||||
